MPM3510AGQV, MPM3510A - 36V/1.2A Module Synchronous Step-Down Converter

MPM3510AGQV Description

.
The MPM3510A is a synchronous, rectified, step-down converter with built-in power MOSFETs, inductor, and two capacitors.

MPM3510AGQV Features

* include over-current protection (OCP) and thermal shutdown (TSD). The MPM3510A eliminates design and manufacturing risks while dramatically improving time-to-market. The MPM3510A is available in a space-saving QFN-19 (3mmx5mmx1.6mm) package. MPM3510A 36V/1.2A Module Synchronous Step-Down Converter

MPM3510AGQV Applications

* Industrial Controls
* Automotive
* Medical and Imaging Equipment
* Telecom Applications
* LDO Replacement
* Space and Resource-Limited Applications
* Distributed Power Systems All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green sta

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MPM3510AGQV, MPM3510A. Please refer to the document for exact specifications by model.

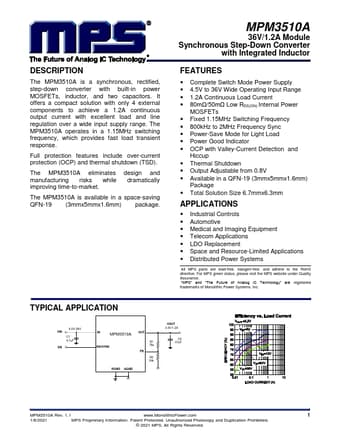

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPM3510AGQV, MPM3510A
Manufacturer
MPS
File Size
1.26 MB
Datasheet
MPM3510A-MPS.pdf
Description
36V/1.2A Module Synchronous Step-Down Converter
Note
This datasheet PDF includes multiple part numbers: MPM3510AGQV, MPM3510A.
Please refer to the document for exact specifications by model.
