MPM3620 Datasheet - MPS

24V Input 2A Module Synchronous Step-Down Converter

MPM3620 Features

* include over-current protection(OCP) and thermal shut down(TSD). MPM3620 eliminates design and manufacturing risks while dramatically improving time-tomarket. The MPM3620 is available in a space-saving QFN-20 (3mmx5mmx1.6mm) package. TYPICAL APPLICATION MPM3620 24V Input 2A Module Synchronous Step-

MPM3620 General Description

The MPM3620 is a synchronous rectified, stepdown module converter with built-in power MOSFETs, inductor, and two capacitors. It offers a compact solution that requires only 5 external components to achieve a 2A continuous output current with excellent load and line regulation over a wide input-suppl.

MPM3620 Datasheet (926.01 KB)

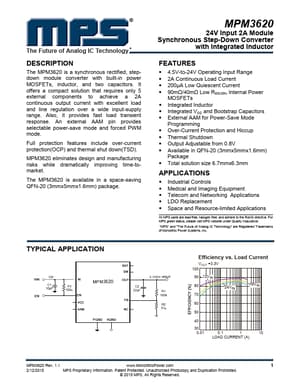

MPM3620 Datasheet Preview — Preview of MPM3620 PDF

Datasheet Details

Part number:

MPM3620

Manufacturer:

MPS

File Size:

926.01 KB

Description:

24v input 2a module synchronous step-down converter.
