MPM3606GQV

Synchronous Step-Down Converter

MPM3606GQV Features

* include over-current protection and thermal shut down. MPM3606 eliminates design and manufacturing risks while dramatically improving time to market. The MPM3606 is available in a space-saving QFN-20 (3mmx5mmx1.6mm) package. TYPICAL APPLICATION MPM3606 21V Input, 0.6A Module Synchronous Step-Down C

MPM3606GQV General Description

The MPM3606 is a synchronous rectified, stepdown converter module with built-in power MOSFETs, inductor and two capacitors. It offers a very compact solution with only 5 external components to achieve a 0.6A continuous output current with excellent load and line regulation over a wide input supply r.

MPM3606GQV Datasheet (771.91 KB)

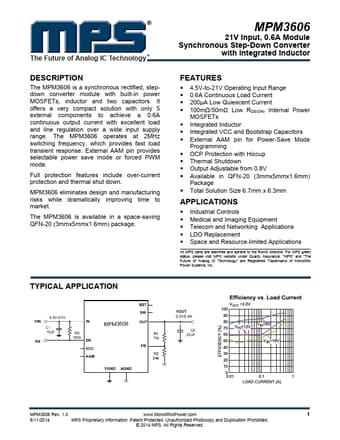

Preview of MPM3606GQV PDF

Datasheet Details

Part number:

MPM3606GQV

Manufacturer:

MPS

File Size:

771.91 KB

Description:

Synchronous step-down converter.
