MPM3612GLQ

Ultra-Low Power Module

MPM3612GLQ Features

* include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown. The MPM3612 requires a minimal number of readily available, standard external components, and is available in a space-saving LGA (3mmx3mmx2mm) package. TYPICAL APPLICATION 12V VIN C1 R4 20µF 100k 3.3V R

MPM3612GLQ General Description

The MPM3612 is a synchronous, rectified, stepdown, switch-mode power module with built-in internal power MOSFETs and high light-load efficiency. The MPM3612 has an ultra-low 5µA quiescent current (IQ). The MPM3612 offers a very compact solution that can achieve up to 1A of continuous output current .

MPM3612GLQ Datasheet (854.12 KB)

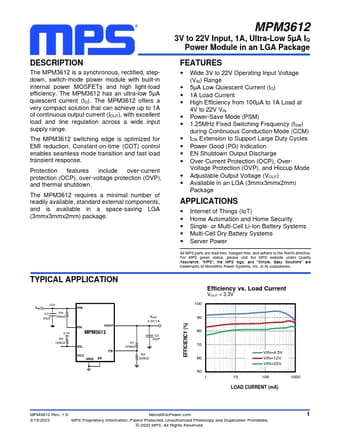

Preview of MPM3612GLQ PDF

Datasheet Details

Part number:

MPM3612GLQ

Manufacturer:

MPS

File Size:

854.12 KB

Description:

Ultra-low power module.
