MPM3612 Datasheet - MPS

MPM3612 - Ultra-Low Power Module

The MPM3612 is a synchronous, rectified, stepdown, switch-mode power module with built-in internal power MOSFETs and high light-load efficiency.

The MPM3612 has an ultra-low 5µA quiescent current (IQ).

The MPM3612 offers a very compact solution that can achieve up to 1A of continuous output current

MPM3612 Features

* include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown. The MPM3612 requires a minimal number of readily available, standard external components, and is available in a space-saving LGA (3mmx3mmx2mm) package. TYPICAL APPLICATION 12V VIN C1 R4 20µF 100k 3.3V R

MPM3612-MPS.pdf

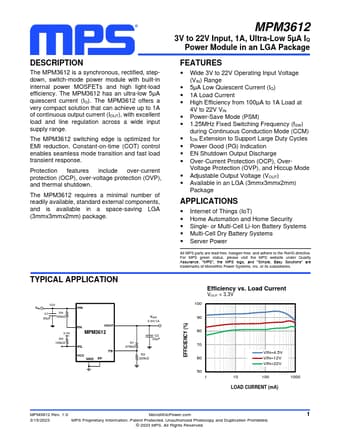

Preview of MPM3612 PDF
MPM3612 Datasheet Preview Page 2 MPM3612 Datasheet Preview Page 3

Datasheet Details

Part number:

MPM3612

Manufacturer:

MPS

File Size:

854.12 KB

Description:

Ultra-low power module.
