MPM3610GQV

1.2A Module Synchronous Step-Down Converter

MPM3610GQV Features

* include over-current protection (OCP) and thermal shutdown (TSD). MPM3610 eliminates design and manufacturing risks while dramatically improving time-tomarket. The MPM3610 is available in a space-saving QFN-20 (3mmx5mmx1.6mm) package. TYPICAL APPLICATION MPM3610 21V Input, 1.2A Module Synchronous S

MPM3610GQV General Description

The MPM3610 is a synchronous, rectified, stepdown converter module with built-in power MOSFETs, inductor, and two capacitors. It offers a compact solution with only 5 external components to achieve a 1.2A continuous output current with excellent load and line regulation over a wide input-supply rang.

MPM3610GQV Datasheet (859.40 KB)

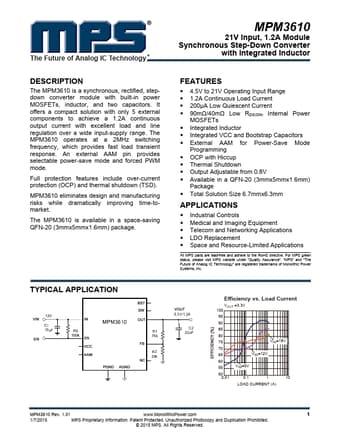

Preview of MPM3610GQV PDF

Datasheet Details

Part number:

MPM3610GQV

Manufacturer:

MPS

File Size:

859.40 KB

Description:

1.2a module synchronous step-down converter.
