MPM3610 - 1.2A Module Synchronous Step-Down Converter

MPS

📥 Download Datasheet

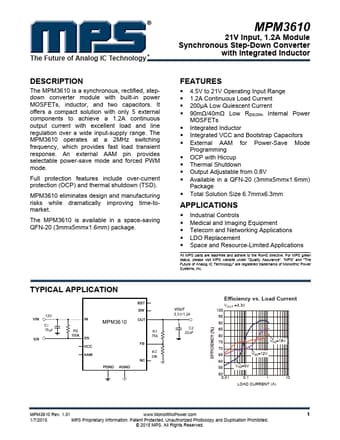

MPM3610 Datasheet Preview — Preview of MPM3610 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPM3610
Manufacturer	MPS
File Size	859.40 KB
Description	1.2A Module Synchronous Step-Down Converter
Datasheet	MPM3610-MPS.pdf

MPM3610 Product details

Description

The MPM3610 is a synchronous, rectified, stepdown converter module with built-in power MOSFETs, inductor, and two capacitors.

Features

include over-current protection (OCP) and thermal shutdown (TSD). MPM3610 eliminates design and manufacturing risks while dramatically improving time-tomarket. The MPM3610 is available in a space-saving QFN-20 (3mmx5mmx1.6mm) package.
