MPM3612GLQ-33

step-down switch-mode converter

MPM3612GLQ-33 Features

* include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown. The MPM3612-33 requires a minimal number of readily available, standard external components, and is available in a space-saving LGA-10 (3mmx3mmx2mm) package. FEATURES

* Wide 3V to 22V Operating Input

MPM3612GLQ-33 General Description

The MPM3612-33 is a synchronous, rectified, step-down switch-mode converter with built-in internal power MOSFETs and high light-load efficiency. The MPM3612-33 has an ultra-low 5µA quiescent current (IQ). The MPM3612-33 offers a very compact solution that achieves 1A of continuous output current (IO.

MPM3612GLQ-33 Datasheet (823.25 KB)

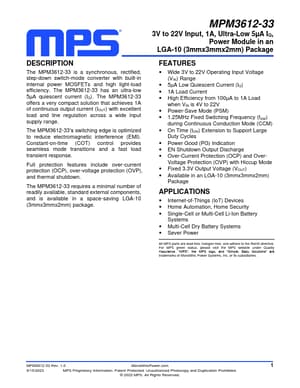

Preview of MPM3612GLQ-33 PDF

Datasheet Details

Part number:

MPM3612GLQ-33

Manufacturer:

MPS

File Size:

823.25 KB

Description:

Step-down switch-mode converter.
