MPQ6527 40V 0.8A 10-Channel Half-Bridge Motor Driver

MPQ6527 Description

MPQ6527 40V, 0.8A, 10-Channel Half-Bridge Motor Driver with Serial Input Control, AEC-Q100 Qualified .
The MPQ6527 is a ten-channel half-bridge DMOS output driver with integrated power MOSFETs.

MPQ6527 Features

* Wide 5.5V to 40V Operating Input Range
* High-Side and Low-Side Drivers Connected in Half-Bridge Configurations
* Up to 0.8A Output Current
* RDS(ON) (HS-FET and LS-FET), Typically 1.3Ω
* Very Low Quiescent Current in Standby Mode vs. Total Temperature Range
* Output Short-

MPQ6527 Applications

* Drive Various Loads in Automotive and Industrial Applications
* DC Motors All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS”, the MPS logo, and “Simple, Easy Solutions” are trademark

📥 Download Datasheet

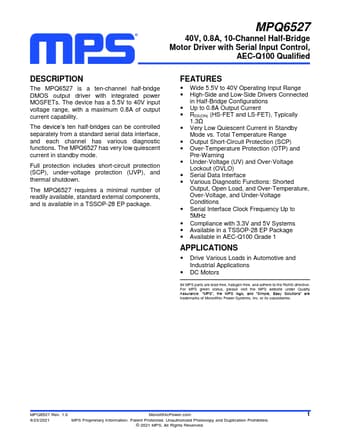

Preview of MPQ6527 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPQ6527
Manufacturer
MPS
File Size
1.28 MB
Datasheet
MPQ6527-MPS.pdf
Description
40V 0.8A 10-Channel Half-Bridge Motor Driver
