MPQ6533 Three-Channel Automotive Pre-Driver

MPQ6533 Description

MPQ6533 Three-Channel Automotive Pre-Driver, AEC-100 Qualified .
The MPQ6533 is a gate driver IC designed for automotive DC motor driver applications.

MPQ6533 Features

* include configurable over-current protection (OCP), adjustable dead time control, under-voltage lockout (UVLO), and thermal shutdown. The MPQ6533 is available in a QFN-32 (5mmx5mm) package with an exposed thermal pad. FEATURES
* Integrated LDO Regulator for Gate Drive
* Charge Pump

MPQ6533 Applications

* The device drives six N-channel power MOSFETs to drive DC motors or other loads. The MPQ6533 integrates an LDO regulator to generate gate drive voltages for the low-side MOSFETs. The device also provides a charge pump that generates a voltage to drive an external N-channel MOSFET for reverse batter

📥 Download Datasheet

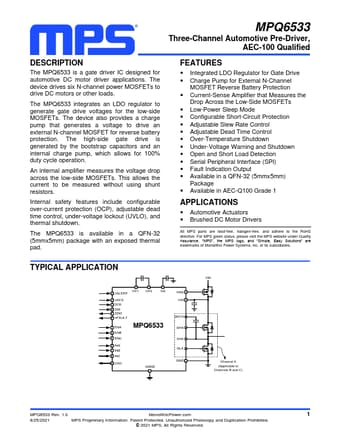

Preview of MPQ6533 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPQ6533
Manufacturer
MPS
File Size
1.10 MB
Datasheet
MPQ6533-MPS.pdf
Description
Three-Channel Automotive Pre-Driver
