MPQ6531 Three-Phase Brushless DC Motor Pre-Driver

MPQ6531 Description

MPQ6531 5V to 60V, Three-Phase Brushless DC Motor Pre-Driver AEC-Q100 Qualified .
The MPQ6531 is a gate driver IC designed for three-phase brushless DC motor driver applications.

MPQ6531 Features

* include programmable short-circuit protection, over-current protection, adjustable dead-time control, under-voltage lockout, and thermal shutdown. The MPQ6531 is available in a 4mmx5mm QFN-28 package with an exposed thermal pad. FEATURES
* Wide 5V to 60V Input Voltage Range
* Charge Pump Ga

MPQ6531 Applications

* It is capable of driving three halfbridges consisting of six N-channel power MOSFETs up to 60V. The MPQ6531 integrates a regulated charge pump to generate gate drive power, and uses a bootstrap capacitor to generate a supply voltage for the high-side MOSFET driver. An internal trickle-charge circui

📥 Download Datasheet

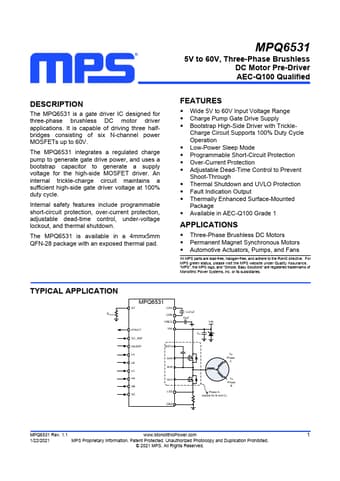

Preview of MPQ6531 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPQ6531
Manufacturer
MPS
File Size
1.03 MB
Datasheet
MPQ6531-MPS.pdf
Description
Three-Phase Brushless DC Motor Pre-Driver
