MPQ6532 Three-Phase Brushless DC Motor Pre-Driver

MPQ6532 Description

.

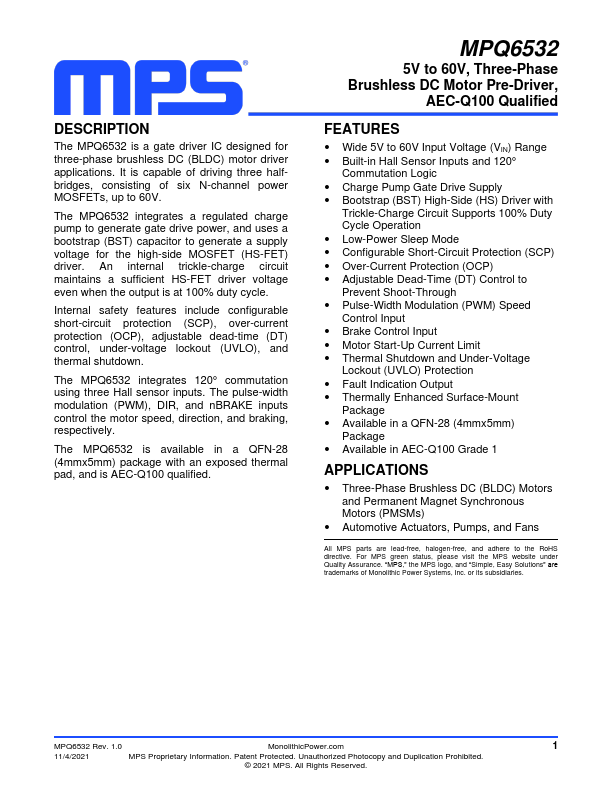

The MPQ6532 is a gate driver IC designed for three-phase brushless DC (BLDC) motor driver applications.

MPQ6532 Features

* include configurable short-circuit protection (SCP), over-current protection (OCP), adjustable dead-time (DT) control, under-voltage lockout (UVLO), and thermal shutdown. The MPQ6532 integrates 120° commutation using three Hall sensor inputs. The pulse-width modulation (PWM), DIR, and nBRAKE inputs

MPQ6532 Applications

* It is capable of driving three halfbridges, consisting of six N-channel power MOSFETs, up to 60V. The MPQ6532 integrates a regulated charge pump to generate gate drive power, and uses a bootstrap (BST) capacitor to generate a supply voltage for the high-side MOSFET (HS-FET) driver. An internal tric

📥 Download Datasheet

Preview of MPQ6532 PDF

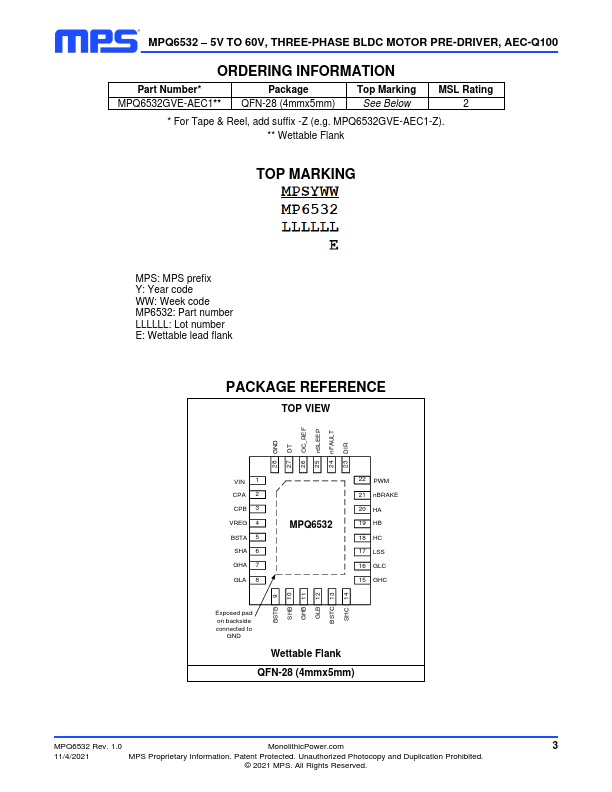

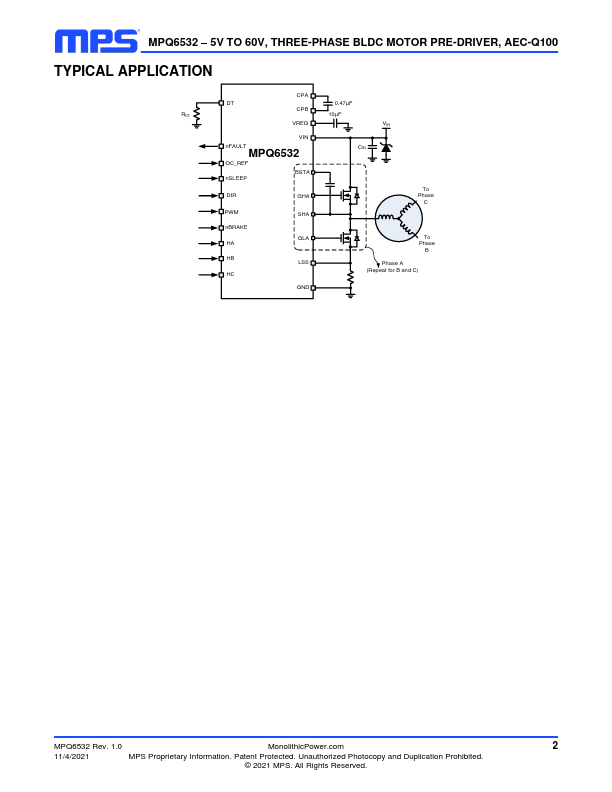

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPQ6532
Manufacturer
MPS
File Size
0.99 MB
Datasheet
MPQ6532-MPS.pdf
Description
Three-Phase Brushless DC Motor Pre-Driver
