MSK0008

VERY HIGH LEVEL DIGITAL DRIVER

MSK0008 Features

* MIL-PRF-38534 QUALIFIED Single Supply Operation From 10V to 45V Replaces NH/DH0008 'And' Input Logic With Expander External Transition Time Control Output Current to 3A Peak Available to DSCC SMD 5962-87617 DESCRIPTION: MSK0008 The MSK 0008 is an integrated high voltage, high current driver de

MSK0008 General Description

MSK0008 The MSK 0008 is an integrated high voltage, high current driver designed to accept standard DTL or TTL logic levels and drive a pulsed load of up to 3A at 28V. AND inputs are provided along with an Expander connection, should additional gating be required. The addition of an external capa.

MSK0008 Datasheet (208.33 KB)

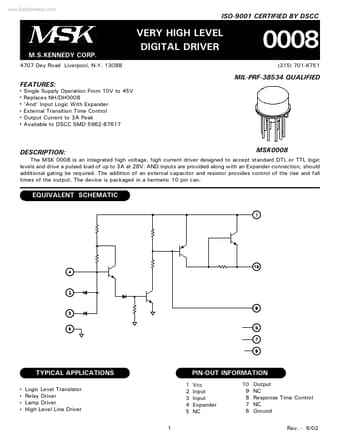

Preview of MSK0008 PDF

Datasheet Details

Part number:

MSK0008

Manufacturer:

MSK

File Size:

208.33 KB

Description:

Very high level digital driver.
www.DataSheet4U.com ISO-9001 CERTIFIED BY DSCC M.S.KENNEDY CORP. 4707 Dey Road Liverpool, N.Y. 13088 VERY HIGH LEVEL DIGITAL DRIVER 0008 (315) 701.
