ESD5304D-MS TVS

📥 Download Datasheet  Datasheet Preview Page 1

Description

.

📥 Download Datasheet

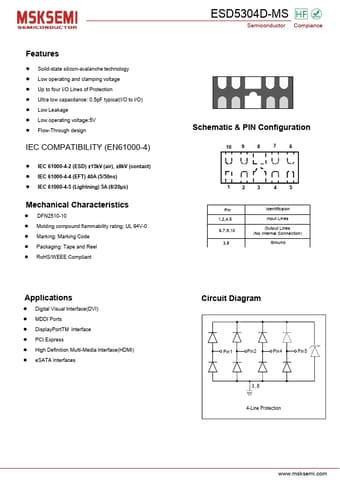

Preview of ESD5304D-MS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ESD5304D-MS
Manufacturer
MSKSEMI
File Size
293.81 KB
Datasheet
ESD5304D-MS-MSKSEMI.pdf
Description
TVS

Features

* Solid-state silicon-avalanche technology
* Low operating and clamping voltage
* Up to four I/O Lines of Protection
* Ultra low capacitance: 0.5pF typical(I/O to I/O)
* Low Leakage
* Low operating voltage:5V
* Flow-Through design IEC COMPATIBILITY (EN61000-4)
* IEC 6

Applications

* Digital Visual Interface(DVI)
* MDDI Ports
* DisplayPortTM Interface
* PCI Express
* High Definition Multi-Media Interface(HDMI)
* eSATA Interfaces ESD5304D-MS Semiconductor Compiance Schematic & PIN Configuration 10 9 8 7 6 1 2 3 4 5 Pin 1,2,4,5 6,7,9,10 3,8 I
