ESD5302F

Small Power TVS

ESD5302F Features

* Stand-off voltage: 5V Max

* Transient protection for each line according to IEC61000-4-2 (ESD): ±20kV (contact and air discharge) IEC61000-4

ESD5302F General Description

The ESD5302F is an ultra-low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces. It has been specifically designed to protect sensitive electronic components which are connected to data and transmission lines from over-stress caused by ESD (Electros.

ESD5302F Datasheet (236.21 KB)

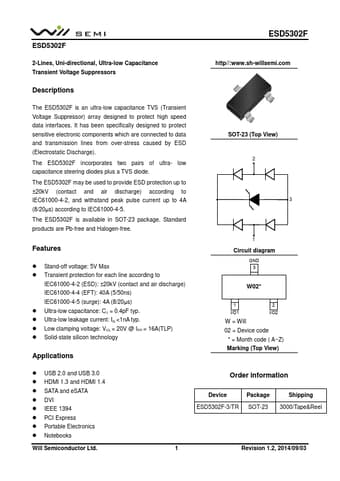

Preview of ESD5302F PDF

Datasheet Details

Part number:

ESD5302F

Manufacturer:

WillSEMI

File Size:

236.21 KB

Description:

Small power tvs.
