ESD5305F Datasheet, Tvs, WillSEMI

ESD5305F Features

• Tvs
• Reverse stand-off voltage: 5V max.
• Transient protection for each line according to IEC61000-4-2 (ESD): ±30kV (contact discharge) IEC61000-4-5 (surge): 6A (8/20μs)

PDF File Details

Part number:

ESD5305F

Manufacturer:

WillSEMI

File Size:

160.40kb

Download:

📄 Datasheet

Description:

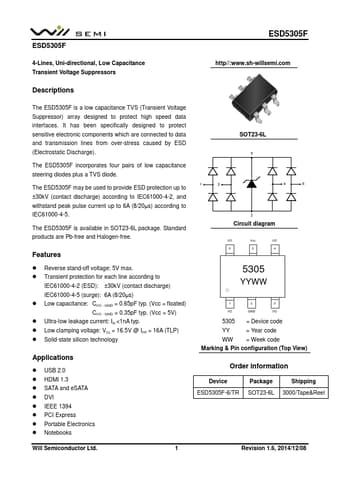

Small power tvs. The ESD5305F is a low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces. It has b
