ESD5305FB

Small Power TVS

ESD5305FB Features

* Reverse stand-off voltage: 5V max.

* Transient protection for each line according to IEC61000-4-2 (ESD): ±30kV (contact discharge) IEC61000-4-5 (surge): 6A (8/

ESD5305FB General Description

The ESD5305FB is a low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces. It has been specifically designed to protect sensitive electronic components which are connected to data and transmission lines from over-stress caused by ESD (Electrostatic .

ESD5305FB Datasheet (164.54 KB)

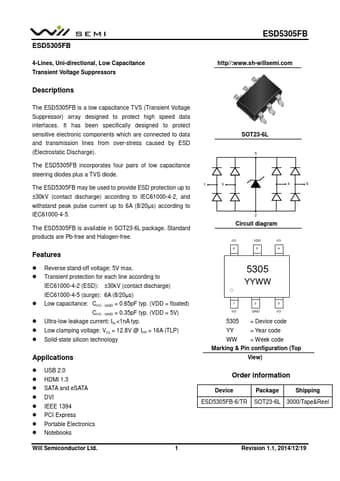

Preview of ESD5305FB PDF

Datasheet Details

Part number:

ESD5305FB

Manufacturer:

WillSEMI

File Size:

164.54 KB

Description:

Small power tvs.
