NZ9F24V, NZ9F2V4 - Zener Voltage Regulators

The NZ9F24V by MSV is a Zener Voltage Regulators. Below is the official datasheet preview.

📥 Download Datasheet

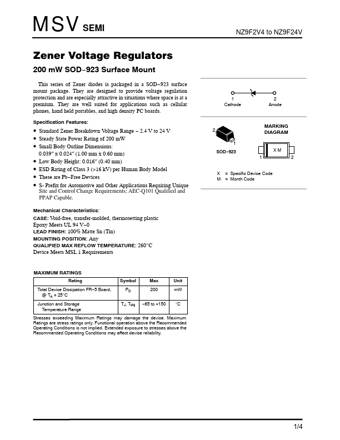

NZ9F24V Zener Voltage Regulators by MSV - Datasheet Preview — Official preview page of the NZ9F24V Zener Voltage Regulators datasheet (MSV).

Datasheet Details

Part number	NZ9F24V, NZ9F2V4
Manufacturer	MSV
File Size	515.69 KB
Description	Zener Voltage Regulators
Datasheet	NZ9F2V4-MSV.pdf
Note	This datasheet PDF includes multiple part numbers: NZ9F24V, NZ9F2V4. Please refer to the document for exact specifications by model.
Additional preview pages of the NZ9F24V datasheet.

NZ9F24V Product details

Features

Standard Zener Breakdown Voltage Range.
2.4 V to 24 V.
Steady State Power Rating of 200 mW.
Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm).
Low Body Height: 0.016″ (0.40 mm).
ESD Rating of Class 3 (>16 kV) per Human Body Model.
These are Pb.
Free Devices.
S- Prefix for Automotive and Other.
