NZ9F2V4ST5G - Zener Voltage Regulators

ON Semiconductor

The NZ9F2V4ST5G by ON Semiconductor is a Zener Voltage Regulators. Below is the official datasheet preview.

📥 Download Datasheet

NZ9F2V4ST5G Zener Voltage Regulators by ON Semiconductor - Datasheet Preview — Official preview page of the NZ9F2V4ST5G Zener Voltage Regulators datasheet (ON Semiconductor).

Datasheet Details

Part number	NZ9F2V4ST5G
Manufacturer	ON Semiconductor
File Size	113.42 KB
Description	Zener Voltage Regulators
Datasheet	NZ9F2V4ST5G_ONSemiconductor.pdf

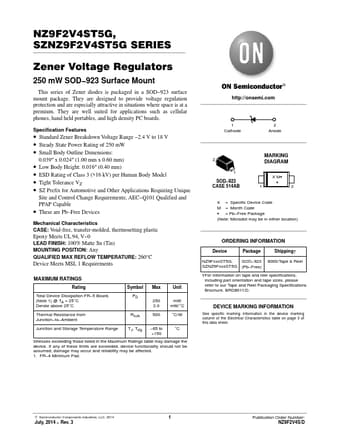

Additional preview pages of the NZ9F2V4ST5G datasheet.

NZ9F2V4ST5G Product details

Features

Standard Zener Breakdown Voltage Range.
2.4 V to 18 V.
Steady State Power Rating of 250 mW.
Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm).
Low Body Height: 0.016″ (0.40 mm).
ESD Rating of Class 3 (>16 kV) per Human Body Model.
Tight Tolerance VZ.
SZ Prefix for Automotive and Other.
