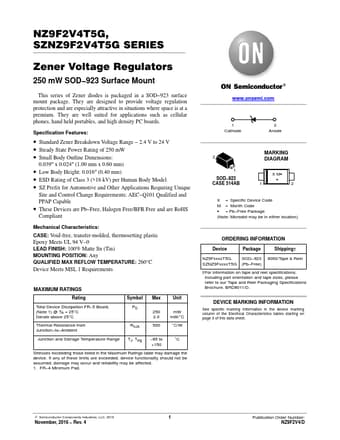

NZ9F24VT5G, NZ9F2V4T5G Datasheet - ON Semiconductor

NZ9F24VT5G Zener Voltage Regulators

NZ9F24VT5G Features

* Standard Zener Breakdown Voltage Range

* 2.4 V to 24 V

* Steady State Power Rating of 200 mW

* Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm)

* Low Body Height: 0.016″ (0.40 mm)

* ESD Rating of Class 3 (>16 kV) per Human Body Mod

Datasheet Details

NZ9F24VT5G, NZ9F2V4T5G

50.35 KB

Zener voltage regulators.

This datasheet PDF includes multiple part numbers: NZ9F24VT5G, NZ9F2V4T5G.
Please refer to the document for exact specifications by model.
