MT3055L - N-Channel MOSFET

MT Semiconductor

📥 Download Datasheet

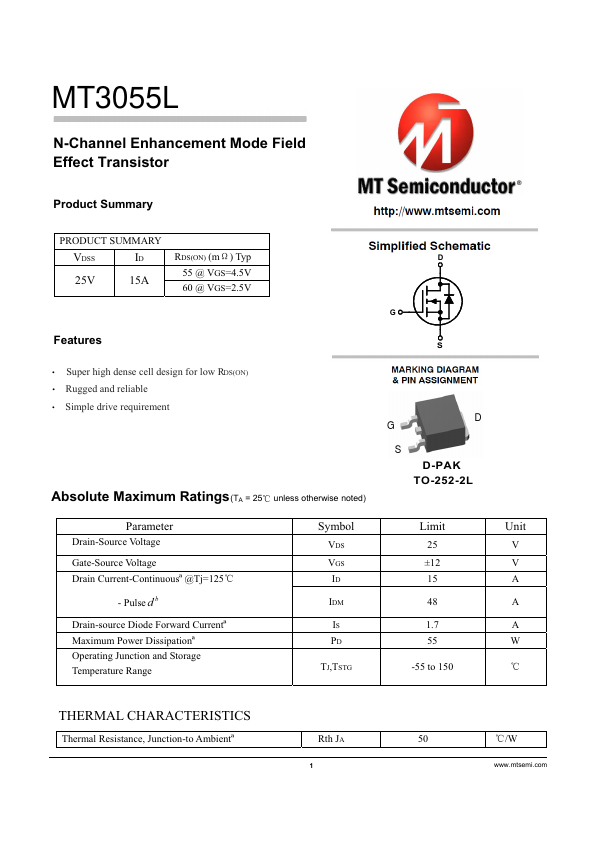

MT3055L Datasheet Preview — Preview of MT3055L PDF

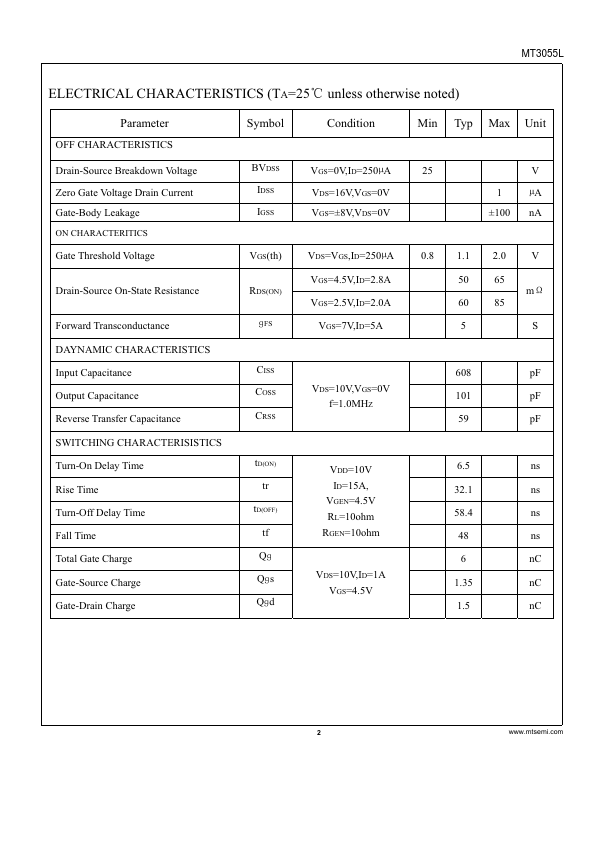

datasheet Preview Page 2

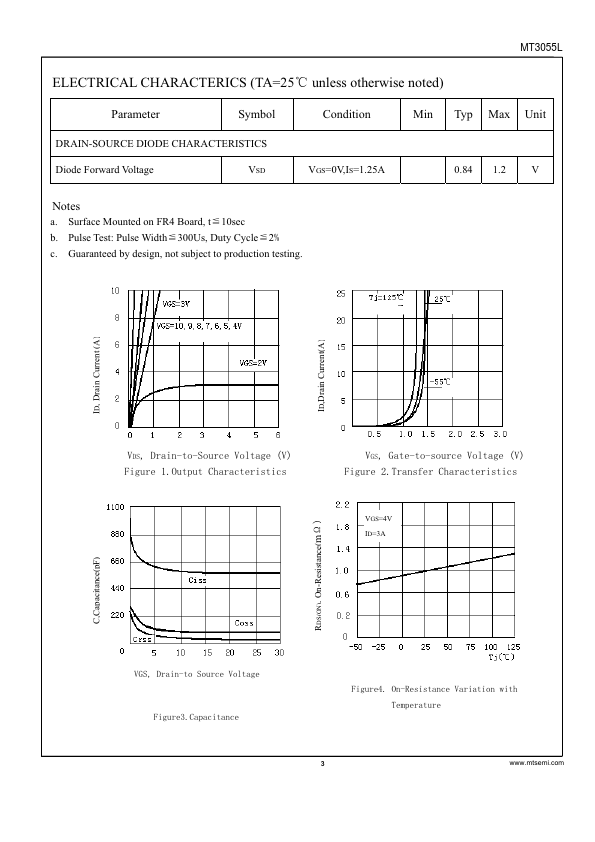

datasheet Preview Page 3

Datasheet Details

Part number	MT3055L
Manufacturer	MT Semiconductor
File Size	239.77 KB
Description	N-Channel MOSFET
Datasheet	MT3055L-MTSemiconductor.pdf

MT3055L Product details

Features

S Super high dense cell design for low RDS(ON) Rugged and reliable Simple drive requirement Absolute Maximum Ratings(TA = 25 unless otherwise noted) D G S D-PAK TO-252-2L Parameter Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous@Tj=125ć - Pulse d b Drain-source Diode Forward Current Maximum Power Dissipation Operating Junction and Storage Temperature Range Symbol VDS VGS ID IDM IS PD TJ,TSTG Limit 25 ±12 15 48 1.7 55 -55 to 150 Unit V V A A A W ć.
