MT3115B Datasheet - MT Semiconductor

MT3115B 150V 120A N-Channel Power MOSFET

MT3115B Typ RDS (on)= 12m / VGS =10V,I D =60A Fast Switching Speed Low Gate Charge 100% avalanche tested This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed. D S G TO-263-2L  MT3115B MT3115B MT3115B 1 0.1 0.01 0.001 0.0001 0.0001 0.001 0.01 0.1 1 10 MT3115B MT3115B MT3115B MT.

MT3115B-MTSemiconductor.pdf

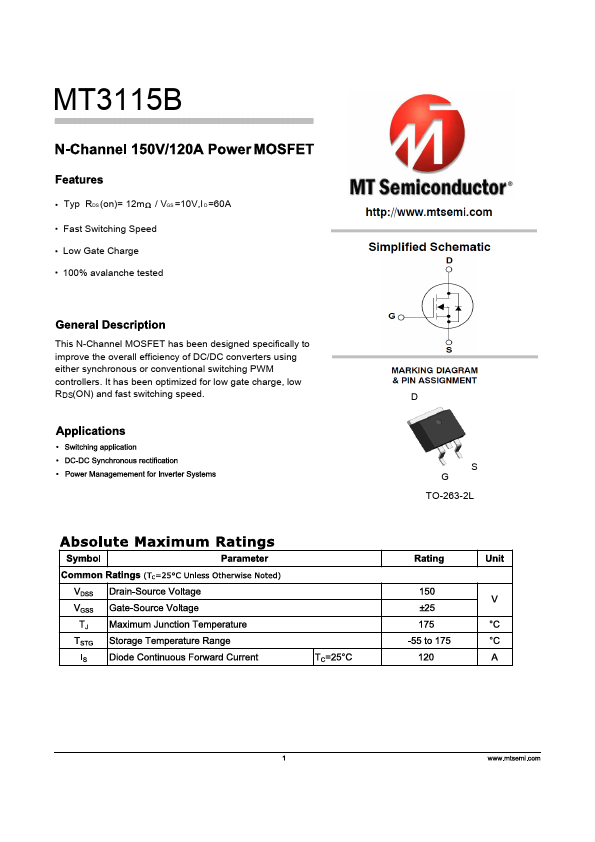

Preview of MT3115B PDF

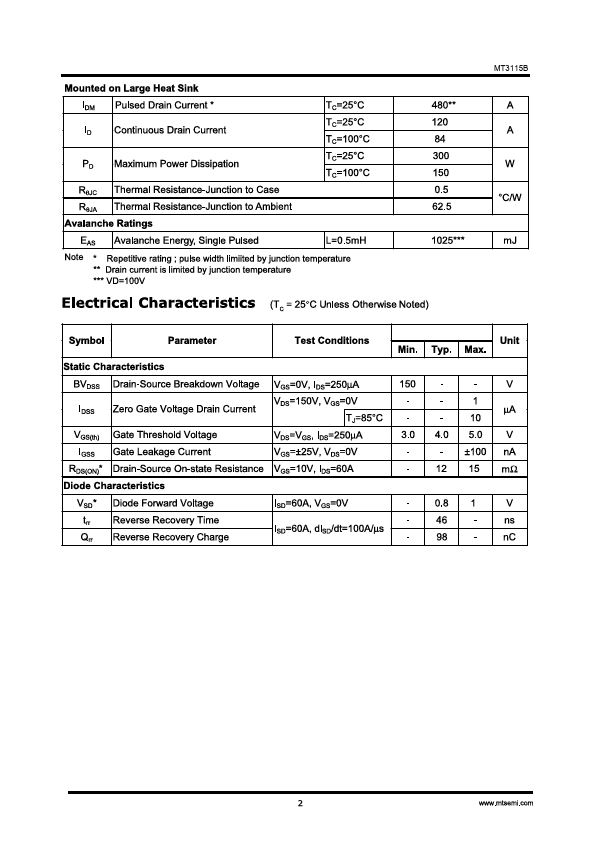

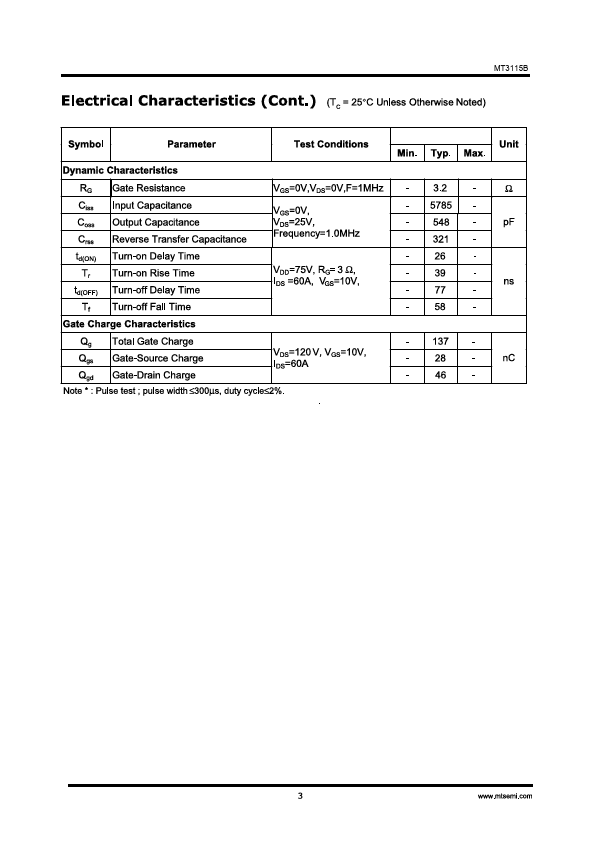

MT3115B Datasheet Preview Page 2 MT3115B Datasheet Preview Page 3

Datasheet Details

Part number:

MT3115B

Manufacturer:

MT Semiconductor

File Size:

1.94 MB

Description:

150v 120a n-channel power mosfet.
