MT3117B, MT3117 Datasheet - MT Semiconductor

MT3117B 125V 170A N-Channel Power MOSFET

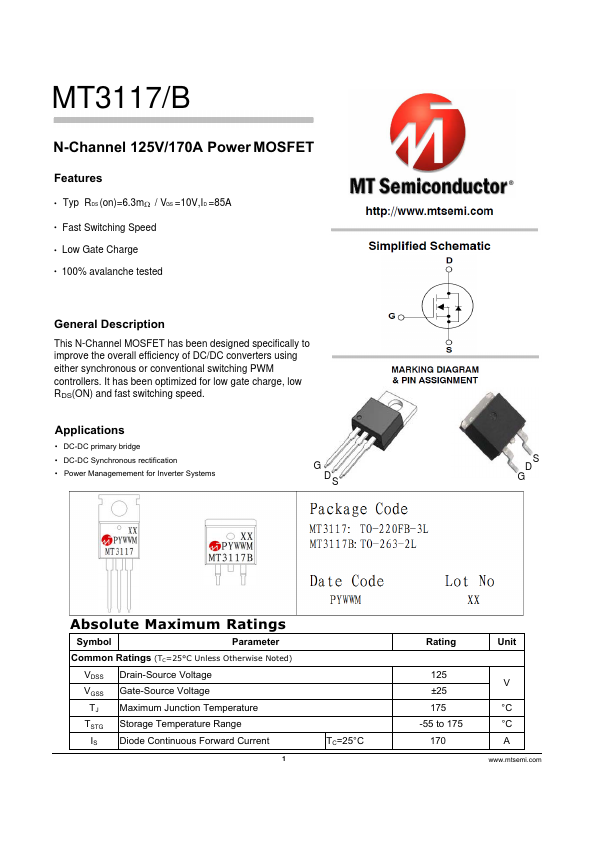

MT3117/B 1&KDQQHO9$3RZHU026)(7 )HDWXUHV ‡ Typ RDS (on)=6.3m: / VGS =10V,ID =85A ‡ Fast Switching Speed ‡ Low Gate Charge ‡100% avalanche tested HQHUDO'HVFULSWLRQ This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed. $SSOLFDWLRQV ‡ '&'&SULPDUEULGJH.

MT3117-MTSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MT3117B, MT3117. Please refer to the document for exact specifications by model.

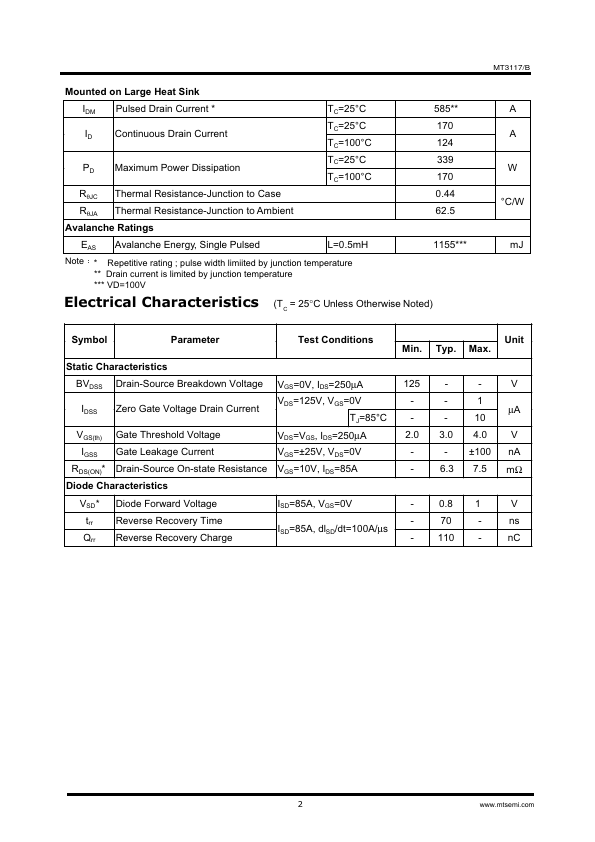

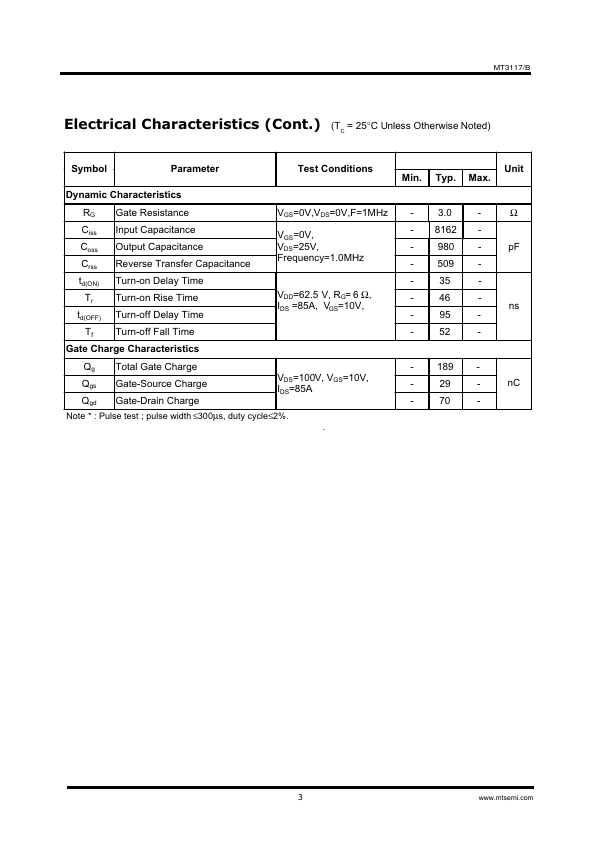

MT3117B Datasheet Preview Page 2 MT3117B Datasheet Preview Page 3

Datasheet Details

Part number:

MT3117B, MT3117

Manufacturer:

MT Semiconductor

File Size:

336.02 KB

Description:

125v 170a n-channel power mosfet.

Note:

This datasheet PDF includes multiple part numbers: MT3117B, MT3117.
Please refer to the document for exact specifications by model.
