MTD655

5 Port 10M/100M Hub

MTD655 Features

* IEEE802.3 Clause 9 and IEEE802.3u Cluse 27 compliant.

* Provide 4 RMII (Reduced Media Independent Interface) ports and 1 MII port.

* Provide 2 inter_repeater stacking bus for 10M and 100M port expansion each.

* Support stacking to 4 units without any external arbitr

MTD655 General Description

The MTD655 is a highly integrated, 10M/ 100M dual speed hub with build_in 2 port switch. Support 4 RMII ports and 1 MII port for 10M/ 100M operation, and meet 100M_hub class_2 spec when connect with external PHYceivers. The MTD655 provides two Inter-repeater stacking bus for 10M and 100M expansion e.

MTD655 Datasheet (236.30 KB)

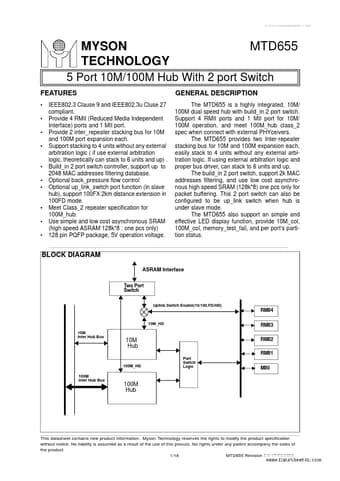

MTD655 Datasheet Preview — Preview of MTD655 PDF

Datasheet Details

Part number:

MTD655

Manufacturer:

MYSON TECHNOLOGY

File Size:

236.30 KB

Description:

5 port 10m/100m hub.
