MTD6501D - 3-Phase Brushless DC Sinusoidal Sensorless Fan Motor Driver

Product Overview

Microchip

Part number	MTD6501D
Manufacturer	Microchip
File Size	742.27 KB
Description	3-Phase Brushless DC Sinusoidal Sensorless Fan Motor Driver
Datasheet	MTD6501D Datasheet
Note	This datasheet PDF includes multiple part numbers: MTD6501D, MTD6501C. Please refer to the document for exact specifications by model.

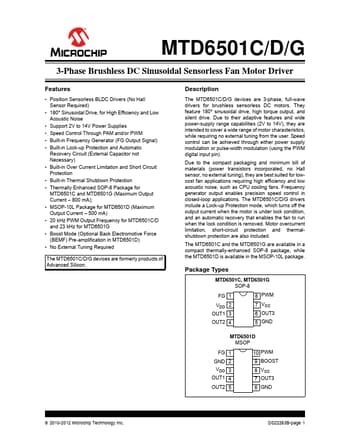

Additional preview pages of the MTD6501D datasheet.

The MTD6501C/D/G devices are 3-phase, full-wave drivers for brushless sensorless DC motors.

Position Sensorless BLDC Drivers (No Hall Sensor Required).
180° Sinusoidal Drive, for High Efficiency and Low Acoustic Noise.
Support 2V to 14V Power Supplies.
Speed Control Through PAM and/or PWM.
Built-in Frequency Generator (FG Output Signal).
Built-in Lock-up Protection and Automatic Recovery Circuit (External Capacitor not Necessary).
Built-in Over Current Limitation and Short Circuit Protection.
Built-in Thermal Shut.
