MTD6501G, MTD6501C - 3-Phase Brushless DC Sinusoidal Sensorless Fan Motor Driver

MTD6501G Description

MTD6501C/D/G 3-Phase Brushless DC Sinusoidal Sensorless Fan Motor Driver .
The MTD6501C/D/G devices are 3-phase, full-wave drivers for brushless sensorless DC motors.

MTD6501G Features

* Position Sensorless BLDC Drivers (No Hall Sensor Required)
* 180° Sinusoidal Drive, for High Efficiency and Low Acoustic Noise
* Support 2V to 14V Power Supplies
* Speed Control Through PAM and/or PWM
* Built-in Frequency Generator (FG Output Signal)

MTD6501G Applications

* requiring high efficiency and low acoustic noise, such as CPU cooling fans. Frequency generator output enables precision speed control in closed-loop applications. The MTD6501C/D/G drivers include a Lock-up Protection mode, which turns off the output current when the motor is under lock condition, a

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MTD6501G, MTD6501C. Please refer to the document for exact specifications by model.

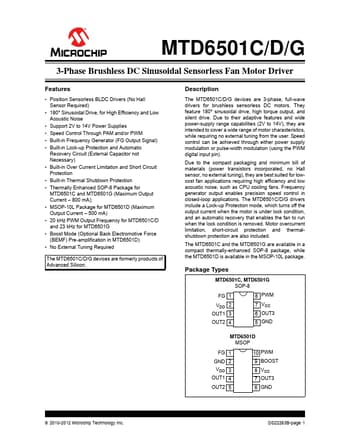

datasheet Preview Page 2 datasheet Preview Page 3
