MTD658

8 Port 10M/100M Hub

MTD658 Features

* IEEE802.3 Clause 9 and IEEE802.3u Cluse 27 compliant.

* Provide 8 RMII (Reduced Media Independent Interface) ports.

* Provide 2 inter_repeater stacking bus for 10M and 100M port expansion each.

* Support stacking to 4 units without any external arbitration logic ( i

MTD658 General Description

The MTD658 is a highly integrated, 10M/ 100M dual speed hub with build_in 2 port switch. Support 8 RMII ports for 10M/100M operation, and really meet 100M_hub class_2 spec when connect with external QPHYceivers. The MTD658 provides two Inter-repeater stacking bus for 10M and 100M expansion each, eas.

MTD658 Datasheet (230.22 KB)

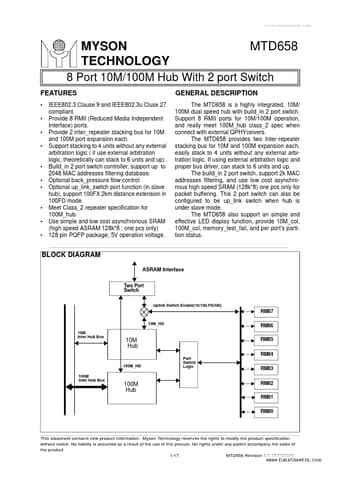

MTD658 Datasheet Preview — Preview of MTD658 PDF

Datasheet Details

Part number:

MTD658

Manufacturer:

MYSON TECHNOLOGY

File Size:

230.22 KB

Description:

8 port 10m/100m hub.
