MBI6001 - TRANSFORMERLESS AC / DC CONSTANT CURRENT DRIVER

MBI6001 Description

www.DataSheet4U.com Preliminary Macroblock, Transformerless AC/DC Constant Current Driver .
With the features of transformerless and small footprint, MBI6001 constant current driver is specifically designed for LED lighting.

MBI6001 Features

* n n n n n Directly powered by 110 VAC Constant output current and Transformerless, 18 mA Drive one chain of LEDs, VOUT up to 60 V while applying 110V AC Reliable technology Small footprint 24-pin SOP24 package MBI6001 January 2003,V1.0i SOP24
* P
* 300

MBI6001 Applications

* n n n n LED Lamps LED Sign and Channel Letter Indication Sign Low Power LEDs Lighting, < 1.5W Typical Application Circuit 1 AC IN~ OUT + DA 9 7 110VAC 24 AC IN~ R3 R1 OUT PC 6 11 To Pin 10 VOUT: Voltage drop between Pin 9 and Pin 11. 10 REF R2 Note: There is no pin being connected to ea

📥 Download Datasheet

Preview of MBI6001 PDF

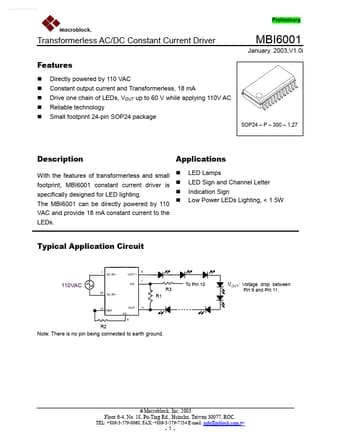

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBI6001
Manufacturer
Macroblock
File Size
226.39 KB
Datasheet
MBI6001_Macroblock.pdf
Description
TRANSFORMERLESS AC / DC CONSTANT CURRENT DRIVER
