MBI6024 Datasheet - Macroblock

MBI6024 PWM-Embedded 3x4-Channel Constant-Current Sink Driver

PWM-Embedded 3x4-Channel Constant-Current Sink Driver for LED Strips MBI6024 is a 3x4-channel, constant-current, PWM-embedded sink driver for LED strips. MBI6024 provides constant current ranging from 3mA to 45mA for each output channel and are adjustable with three corresponding external resistor.

MBI6024 Features

* z z z z z z Preliminary Datasheet MBI6024 PWM-Embedded 3x4-Channel Constant-Current Sink Driver for LED Strips Shrink SOP 3x4-channel constant-current sink driver for LED strips Constant current range: 3~45mA 3 groups of output current, each group is set by an external resistor Sustaining voltag

MBI6024-Macroblock.pdf

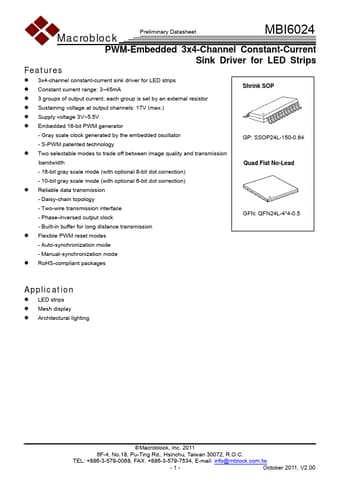

Preview of MBI6024 PDF
MBI6024 Datasheet Preview Page 2 MBI6024 Datasheet Preview Page 3

Datasheet Details

Part number:

MBI6024

Manufacturer:

Macroblock

File Size:

502.86 KB

Description:

Pwm-embedded 3x4-channel constant-current sink driver.
