MBI6010 Datasheet - Macroblock

3-Channel Driver

MBI6010 Features

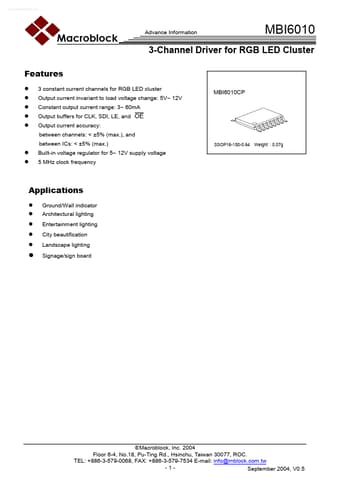

* z z z z z Advance Information MBI6010 3-Channel Driver for RGB LED Cluster 3 constant current channels for RGB LED cluster Output current invariant to load voltage change: 5V~ 12V Constant output current range: 3~ 60mA Output buffers for CLK, SDI, LE, and OE Output current accuracy: between chan

MBI6010 General Description

Pin No. 1 Pin Configuration Function Pin Name GND 2, 15 3, 14 Ground terminal for control logic and current sink Output enable terminal OE , When(active)low, the output drivers are OE _ OUT enabled; when high, all output drivers are turned OFF (blanked) Data strobe input terminal Serial data is.

MBI6010 Datasheet (212.87 KB)

MBI6010 Datasheet Preview — Preview of MBI6010 PDF

Datasheet Details

Part number:

MBI6010

Manufacturer:

Macroblock

File Size:

212.87 KB

Description:

3-channel driver.
