MBI6034 Datasheet - Macroblock

PWM-Embedded 3x4-Channel Constant-Current Sink Driver

MBI6034 Features

* Supply voltage - 6V~24V by internal LDO Shrink SOP - 3.3V/5V direct input

* 3x4-channel constant-current sink driver for LED strips - Constant current range: 3~45mA @ VDD=6 ~24V or VDD=VCA=5V 3~30mA @ VDD=VCA=3.3V - 3 groups of current gain - Sustaining voltage at output channels: 28

MBI6034 General Description

MBI6034 is a 3x4-channel, constant-current, PWM-embedded sink driver for LED strips. MBI6034 provides constant current ranging from 3mA to 45mA for each output channel and are adjustable through only single external resistor and corresponding current gain settings. Besides, MBI6034 supports 6~24V.

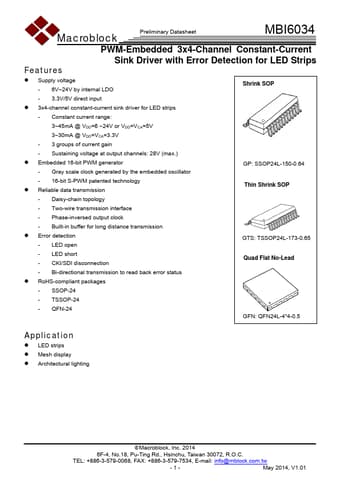

MBI6034 Datasheet (604.50 KB)

MBI6034 Datasheet Preview — Preview of MBI6034 PDF

Datasheet Details

Part number:

MBI6034

Manufacturer:

Macroblock

File Size:

604.50 KB

Description:

Pwm-embedded 3x4-channel constant-current sink driver.
