MBI6033 Datasheet - Macroblock

MBI6033 PWM-Embedded 3x4-Channel Constant-Current Sink Driver

Sink Driver for LED Strips MBI6033 is a 3x4-channel, constant-current, PWM-embedded sink driver for LED strips. MBI6033 provides constant current ranging from 3mA to 45mA for each output channel and are adjustable through only single external resistor and corresponding current gain settings. Bes.

MBI6033 Features

* Supply voltage - 6V~24V by internal LDO Shrink SOP - 3.3V/5V direct input

* 3x4-channel constant-current sink driver for LED strips - Constant current range: 3~45mA @ VDD=6 ~24V or VDD=VCA=5V 3~30mA @ VDD=VCA=3.3V - 3 groups of current gain - Sustaining voltage at output channels: 28

MBI6033 Datasheet (566.21 KB)

Preview of MBI6033 PDF

Datasheet Details

Part number:

MBI6033

Manufacturer:

Macroblock

File Size:

566.21 KB

Description:

Pwm-embedded 3x4-channel constant-current sink driver.

📁 Related Datasheet

MBI6030 PWM Embedded 3-Channel Constant Current LED Sink Driver (Macroblock)

MBI6034 PWM-Embedded 3x4-Channel Constant-Current Sink Driver (Macroblock)

MBI6001 TRANSFORMERLESS AC / DC CONSTANT CURRENT DRIVER (Macroblock)

MBI6010 3-Channel Driver (Macroblock)

MBI6020 PWM-Embedded 3-Channel Constant Current LED Sink Driver (Macroblock)

MBI6021 Built-in PWM 3-channel constant current LED driver (Macroblock)

MBI6023 PWM-Embedded 3x4-Channel Constant-Current Sink Driver (Macroblock)

MBI6024 PWM-Embedded 3x4-Channel Constant-Current Sink Driver (Macroblock)

MBI6120 Single-wire 3-Channel Constant Current Sink Driver (Macroblock)

MBI6650 1.2A DC/DC Converter (Macroblock)

TAGS

MBI6033 PWM-Embedded 3x4-Channel Constant-Current Sink Driver Macroblock

Image Gallery

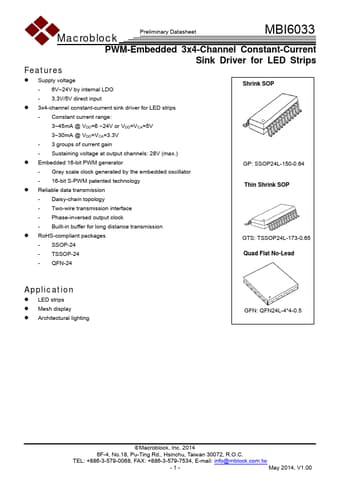

MBI6033 Datasheet Preview Page 2 MBI6033 Datasheet Preview Page 3
