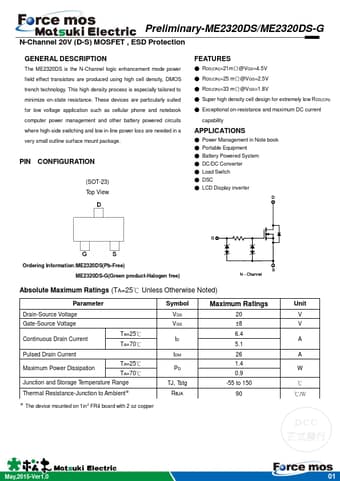

ME2320DS-G Datasheet, Mosfet, Matsuki

ME2320DS-G Features

• Mosfet
• RDS(ON)=21mΩ@VGS=4.5V
• RDS(ON)=25 mΩ@VGS=2.5V
• RDS(ON)=33 mΩ@VGS=1.8V
• Super high density cell design for extremely low RDS(ON)
• Exceptiona

PDF File Details

Part number:

ME2320DS-G

Manufacturer:

Matsuki

File Size:

1.24MB

Download:

📄 Datasheet

Description:

N-channel 20v (d-s) mosfet. The ME2320DS is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench

ME2320DS-G Application

• Applications
• Power Management in Note book
• Portable Equipment
• Battery Powered System
• DC/DC Converter
