SP490 - Full-Duplex RS-485 Transceivers

SP490 Description

SP490 / SP491 Full-Duplex RS-485 Transceivers .
The SP490 is a low power differential line driver/receiver meeting RS-485 and RS-422 standards up to 5Mbps.

SP490 Features

* 5V only
* Low power BiCMOS
* Driver/receiver enable (SP491)
* RS-485 and RS-422 drivers/receivers
* Pin compatible with LTC490 and SN75179 (SP490)
* Pin compatible with LTC491 and SN75180 (SP491) Ordering Information - Back Page Block Diagrams

📥 Download Datasheet

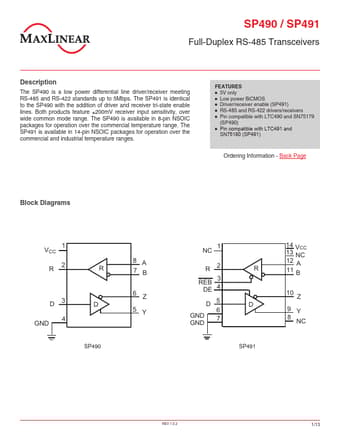

Preview of SP490 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP490
Manufacturer
MaxLinear
File Size
337.82 KB
Datasheet
SP490-MaxLinear.pdf
Description
Full-Duplex RS-485 Transceivers
