SP490E - Enhanced Full-Duplex RS-485 Transceivers

SP490E Description

SP490E / SP491E Enhanced Full-Duplex RS-485 Transceivers .
The SP490E is a low power differential line driver/receiver meeting RS-485 and RS-422 standards up to 10Mbps.

SP490E Features

* 5V only
* Low power BiCMOS
* Driver/receiver enable (SP491E)
* RS-485 and RS-422 drivers/receivers
* Pin compatible with LTC490 and SN75179 (SP490E)
* Pin compatible with LTC491 and SN75180 (SP491E)
* Improved ESD specifications: ±15kV

📥 Download Datasheet

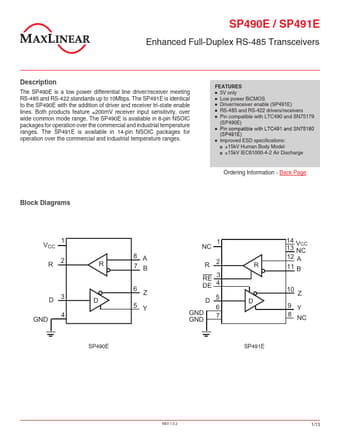

Preview of SP490E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP490E
Manufacturer
MaxLinear
File Size
337.85 KB
Datasheet
SP490E-MaxLinear.pdf
Description
Enhanced Full-Duplex RS-485 Transceivers
