SP491E - Enhanced Full-Duplex RS-485 Transceivers

Product Overview

MaxLinear

📥 Download Datasheet

SP491E Enhanced Full-Duplex RS-485 Transceivers by MaxLinear - Datasheet Preview — Datasheet preview – SP491E

Datasheet Details

Part number	SP491E
Manufacturer	MaxLinear
File Size	337.85 KB
Description	Enhanced Full-Duplex RS-485 Transceivers
Datasheet	SP491E Datasheet
Note	This datasheet PDF includes multiple part numbers: SP491E, SP490E. Please refer to the document for exact specifications by model.

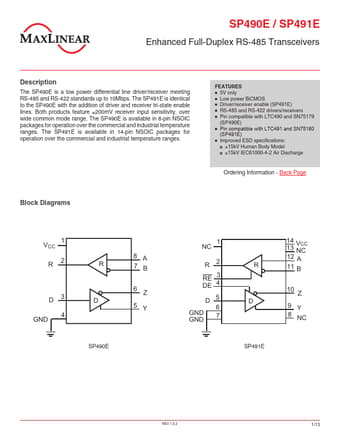

Additional preview pages of the SP491E datasheet.

Product details

Description

The SP490E is a low power differential line driver/receiver meeting RS-485 and RS-422 standards up to 10Mbps.

Features

5V only.
Low power BiCMOS.
Driver/receiver enable (SP491E).
RS-485 and RS-422 drivers/receivers.
Pin compatible with LTC490 and SN75179 (SP490E).
Pin compatible with LTC491 and SN75180 (SP491E).
Improved ESD specifications: ±15kV Human Body Model ±15kV IEC61000-4-2 Air Discharge Ordering Information - Back Page Block Diagrams VCC 1 R2 D.
