SP491, SP490, Full-Duplex RS-485 Transceivers

SP490 / SP491 Full-Duplex RS-485 Transceivers .
The SP490 is a low power differential line driver/receiver meeting RS-485 and RS-422 standards up to 5Mbps.

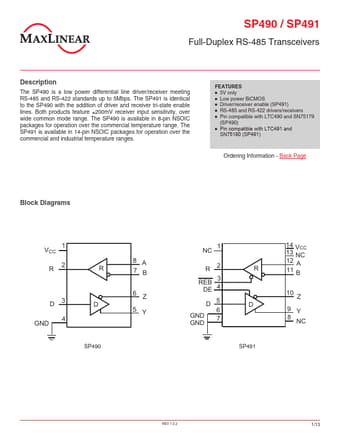

datasheet Preview Page 1 from Datasheet4u.com

SP490-MaxLinear.pdf

SP491 Datasheet Preview — This datasheet PDF includes multiple part numbers: SP491, SP490. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SP491, SP490

Manufacturer:

MaxLinear

File Size:

337.82 KB

Description:

Full-Duplex RS-485 Transceivers

Note:

This datasheet PDF includes multiple part numbers: SP491, SP490.
Please refer to the document for exact specifications by model.

Features

* 5V only
* Low power BiCMOS
* Driver/receiver enable (SP491)
* RS-485 and RS-422 drivers/receivers
* Pin compatible with LTC490 and SN75179 (SP490)
* Pin compatible with LTC491 and SN75180 (SP491) Ordering Information - Back Page Block Diagrams
