XR10910 16:1 Sensor Interface AFE

The XR10910 is a unique sensor interface integrated circuit with an on-board 16:1 multiplexer, offset correction DAC, instrumentation amplifier and voltage reference. The XR10910 is designed to integrate multiple bridge sensors with a microcontroller (MCU) or field-programmable gate array (FPGA). Th.

XR10910 Features

* make the XR10910 well suited for both industrial and consumer applications using bridge sensors. F E AT U R E S

* Integrated features for interfacing multiple bridge sensors with an MCU or FPGA: 16:1 differential mux with I2C interface Instrumentation amplifier LDO Offset correction DAC wi

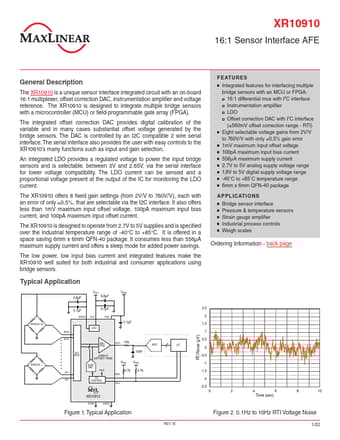

XR10910 Datasheet (1.01 MB)
