XR17V358

HIGH PERFORMANCE OCTAL PCI EXPRESS UART

XR17V358 Features

* such as the 256-bytes TX and RX FIFOs, programmable Fractional Baud Rate Generator, Automatic Hardware or Software Flow Control, Auto RS-485 Half-Duplex Direction Control, programmable TX and RX FIFO Trigger Levels, TX and RX FIFO Level Counters, infrared mode, and data rates up to 31.25 Mbps. The X

XR17V358 General Description

The XR17V3581 is a single chip 8-channel PCI Express (PCIe) UART (Universal Asynchronous Receiver and Transmitter), optimized for higher performance and lower power. The XR17V358 serves as a single lane PCIe bridge to 8 independent enhanced 16550 compatible UARTs. The XR17V358 is compliant to PCIe 2.

XR17V358 Datasheet (2.18 MB)

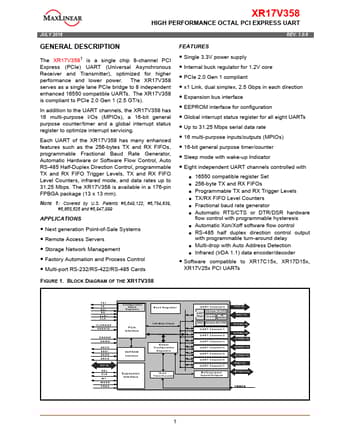

Preview of XR17V358 PDF

Datasheet Details

Part number:

XR17V358

Manufacturer:

MaxLinear

File Size:

2.18 MB

Description:

High performance octal pci express uart.
