XR18910 - 8:1 Sensor Interface Analog Front End

MaxLinear

📥 Download Datasheet

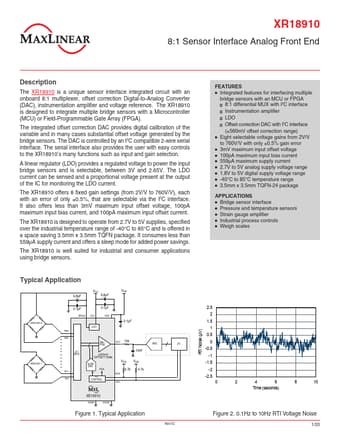

XR18910 Datasheet Preview — Preview of XR18910 PDF

Datasheet Details

Part number: XR18910
Manufacturer: MaxLinear
File Size: 706.99 KB
Datasheet: XR18910-MaxLinear.pdf
Description: 8:1 Sensor Interface Analog Front End

XR18910 Product details

Description

The XR18910 is a unique sensor interface integrated circuit with an onboard 8:1 multiplexer, offset correction Digital-to-Analog Converter (DAC), instrumentation amplifier and voltage reference.

Features

Integrated features for interfacing multiple bridge sensors with an MCU or FPGA 8:1 differential MUX with I2C interface Instrumentation amplifier LDO Offset correction DAC with I2C interface (±560mV offset correction range).
Eight selectable voltage gains from 2V/V to 760V/V with only ±0.5% gain error.
3mV maximum input offset voltage.
100pA maximum input bias current.
559μA maximum supply current.
2.7V to 5V analog supply voltage rang.
