XR1004 - GaAs MMIC Receiver

Mimix Broadband

Datasheet Details

Part number	XR1004
Manufacturer	Mimix Broadband
File Size	395.79 KB
Description	GaAs MMIC Receiver
Datasheet	XR1004 Datasheet

General Description

Sub-harmonic Receiver Integrated LNA, LO Doubler/Buffer, Image Reject Mixer +4.0 dBm Input Third Order Intercept (IIP3) +2.0 dBm LO Drive Level 9.0 dB Conversion Gain 3.5 dB Noise Figure 18.0 dB Image Rejection 100% On-Wafer RF, DC and Noise Figure Testing 100% Visual Inspection to MIL-STD-883 Method 2010 Chip Device Layout R1004 Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id1,2), (Id3) Gate Bias Voltage (Vg) Input Power (RF Pin) Storage Temperature (Tstg) Operating Temperature (Ta) Channel Temperature (Tch) +6.0 VDC 110, 180 mA +0.3 VDC +5 dBm -65 to +165 OC -55 to MTTF Table3 MTTF Table 3 (3) Channel temperature affects a device's MTTF.

It is recommended to keep channel temperature as low as possible for maximum life.

Electrical Characterist

Overview

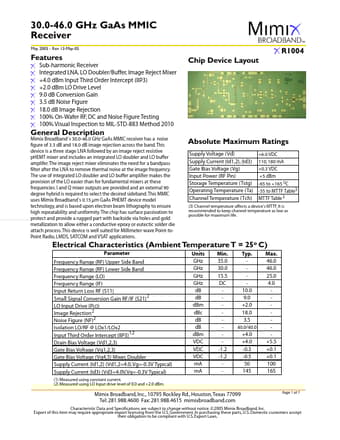

30.0-46.0 GHz GaAs MMIC Receiver May 2005 - Rev 13-May-05.

Key Features

Mimix Broadband’s 30.0-46.0 GHz GaAs MMIC receiver has a noise figure of 3.5 dB and 18.0 dB image rejection across the band. This device is a three stage LNA followed by an image reject resistive pHEMT mixer and includes an integrated LO doubler and LO buffer amplifer. The image reject mixer eliminates the need for a bandpass filter after the LNA to remove thermal noise at the image frequency. The use of integrated LO doubler and LO buffer amplifier makes the provision of the LO easier than for.
