XR1001 Datasheet, Receiver, Mimix Broadband

XR1001 Features

  • Receiver Sub-Harmonic Receiver 9.0 dB Conversion Gain 4.0 dB Noise Figure 12.0 dB Image Rejection 100% On-Wafer RF, DC and Noise Figure Testing 100% Visual Inspection to MIL-STD-883 Method 2010

PDF File Details

Part number:

XR1001

Manufacturer:

Mimix Broadband

File Size:

1.41MB

Download:

📄 Datasheet

Description:

Gaas mmic receiver. Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Voltage (Vg) Input Power (RF Pin) Storage Temperature (Ts

Datasheet Preview: XR1001 📥 Download PDF (1.41MB)

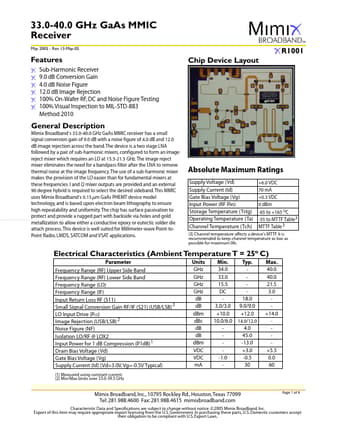

Page 2 of XR1001 Page 3 of XR1001

XR1001 Application

  • Applications Chip Device Layout R1001 R1001 General Description Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Vol
