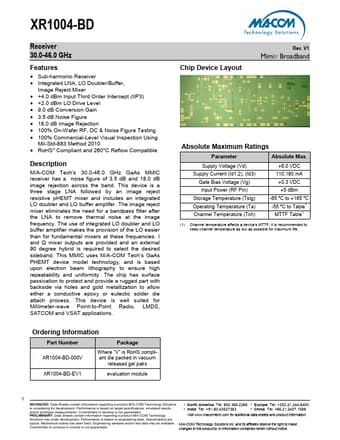

XR1004-BD Datasheet, Receiver, MA-COM

XR1004-BD Features

• Receiver
• Sub-harmonic Receiver
• Integrated LNA, LO Doubler/Buffer, Image Reject Mixer
• +4.0 dBm Input Third Order Intercept (IIP3)
• +2.0 dBm LO Drive Level <

PDF File Details

Part number:

XR1004-BD

Manufacturer:

MA-COM

File Size:

1.11MB

Download:

📄 Datasheet

Description:

Receiver. M/A-COM Tech’s 30.0-46.0 GHz GaAs MMIC receiver has a noise figure of 3.5 dB and 18.0 dB image rejection across the band. This device

XR1004-BD Application

• Applications Ordering Information Part Number Package XR1004-BD-000V Where “V” is RoHS compliant die packed in vacuum released gel paks XR100
