XR1002 Datasheet, Receiver, Mimix Broadband

XR1002 Features

• Receiver Fundamental High Dynamic Range Receiver Integrated Gain Control +4.0 dBm Input Third Order Intercept (IIP3) 14.0 dB Conversion Gain 3.0 dB Noise Figure 25.0 dB Image Rejection 100% On-W

PDF File Details

Part number:

XR1002

Manufacturer:

Mimix Broadband

File Size:

428.12kb

Download:

📄 Datasheet

Description:

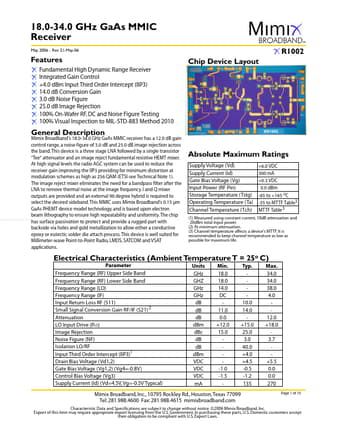

Gaas mmic receiver. R1002 Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Voltage (Vg) Input Power (RF Pin) Storage Temperat

XR1002 Application

• Applications Chip Device Layout R1002 General Description R1002 Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Vol
