XR17C152 Datasheet, Uart, Exar Corporation

XR17C152 Features

  • Uart
  • High Performance Dual PCI UART
  • PCI Bus 2.2 Target Interface Compliance
  • 5V PCI Bus Compliant up to 33MHz Clock
  • 32-bit PCI Bus Interface with EEPRO

PDF File Details

Part number:

XR17C152

Manufacturer:

Exar Corporation

File Size:

681.93kb

Download:

📄 Datasheet

Description:

5v pci bus dual uart. The XR17C1521 (152) is a monolithic dual PCI Bus Universal Asynchronous Receiver and Transmitter (UART) in Exar’s PCI Bus UART family

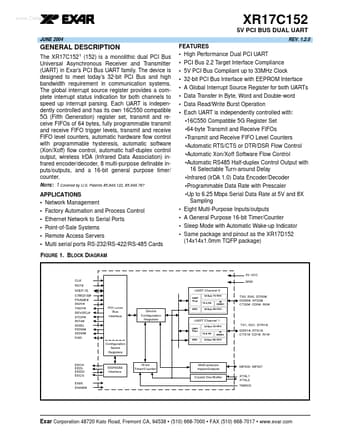

Datasheet Preview: XR17C152 📥 Download PDF (681.93kb)
Page 2 of XR17C152 Page 3 of XR17C152

XR17C152 Application

  • Applications
  • Network Management
  • Factory Automation and Process Control
  • Ethernet Network to Serial Ports
  • Poin
