XR17L152IM

3.3V PCI BUS DUAL UART

Exar Corporation

XR17L152IM Features

* APPLICATIONS

* Network Management

* Factory Automation and Process Control

* Ethernet Network to Serial Ports

* Point-of-Sale Systems

* Multi serial ports RS-232/RS-422/RS-485 Cards

* High Performance DUART

* PCI Bus 2.2 Target Interface Com

XR17L152IM General Description

The XR17L1521 (L152) is a monolithic dual PCI Bus Universal Asynchronous Receiver and Transmitter (UART) in Exar’s PCI Bus UART family. The device is designed to meet today’s 32-bit PCI Bus and high bandwidth requirements in communication systems. The global interrupt source register provides a comp.

XR17L152IM Datasheet (318.96 KB)

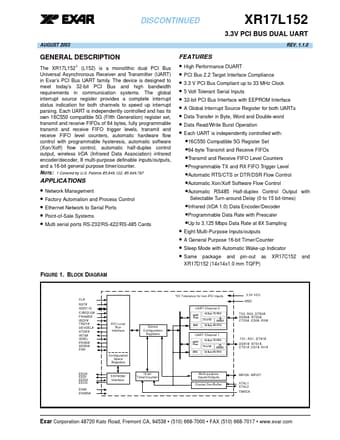

XR17L152IM Datasheet Preview — Preview of XR17L152IM PDF

Datasheet Details

Part number:

XR17L152IM

Manufacturer:

Exar Corporation

File Size:

318.96 KB

Description:

3.3v pci bus dual uart.
