XR17D158 - UNIVERSAL (3.3V AND 5V) PCI BUS OCTAL UART

Exar Corporation

📥 Download Datasheet

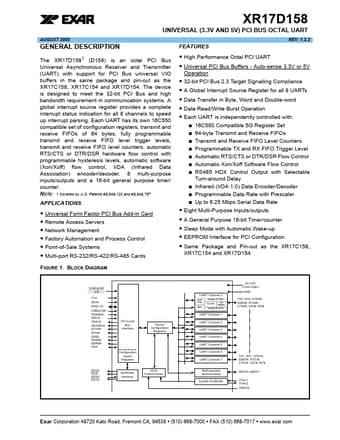

XR17D158 Datasheet Preview — Preview of XR17D158 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: XR17D158
Manufacturer: Exar Corporation
File Size: 626.54 KB
Datasheet: XR17D158_ExarCorporation.pdf
Description: UNIVERSAL (3.3V AND 5V) PCI BUS OCTAL UART

XR17D158 Product details

Features

REV. 1.2.2 The XR17D1581 (D158) is an octal PCI Bus Universal Asynchronous Receiver and Transmitter (UART) with support for PCI Bus universal VIO buffers in the same package and pin-out as the XR17C158, XR17C154 and XR17D154. The device is designed to meet the 32-bit PCI Bus and high bandwidth requirement in communication systems. A global interrupt source register provides a complete interrupt status indication for all 8 channels to speed up interrupt parsing. Each UART has its own 16C550 com.
