XR17C158

5V PCI BUS OCTAL UART

XR17C158 Features

* High Performance Octal UART

* 32-bit PCI Bus Interface with EEPROM Interface

* Interrupt Source Register for all 8 UARTs

* Data Transfer in Byte, Word and Double-word

* Read/Write Burst Operation

* Each UART Includes

* 16C550 Compatible Regis

XR17C158 General Description

The XR17C1581 (158) is an octal Universal Asynchronous Receiver and Transmitter (UART). The device is designed to meet the 32-bit PCI Bus and high bandwidth requirement in communication systems. The global interrupt source register provides a complete interrupt status indication for all 8 channels t.

XR17C158 Datasheet (857.33 KB)

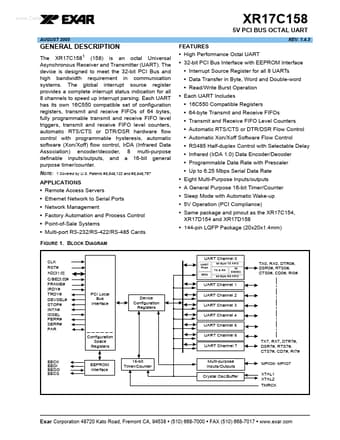

Preview of XR17C158 PDF

Datasheet Details

Part number:

XR17C158

Manufacturer:

Exar Corporation

File Size:

857.33 KB

Description:

5v pci bus octal uart.
