XR33180 - TSOT23 RS-485/RS-422 Receivers

Datasheet Summary

Description

The XR33180, XR33181, XR33183 and XR33184 are high performance RS-485/RS-422 receivers designed to meet the increasing system requirements found in today’s high performance serial communication applications.

Features

  • Max 52Mbps data rate.
  • Wide 3.0V to 5.5V supply operation.
  • Robust Electrostatic Discharge (ESD) protection for RS-485 bus pins.
  • ±15kV human body model.
  • ±15kV IEC61000-4-2 air discharge.
  • ±8kV IEC61000-4-2 contact discharge.
  • Enhanced receiver failsafe protection for open, shorted, or terminated but idle data lines.
  • -40°C to 125°C ambient operating temperature range.
  • Lead-free (RoHS 6) TSOT23-5 and TSOT23-6 packaging.
  • Absolute minimum pin count opti.

📥 Download Datasheet

Datasheet preview – XR33180

Datasheet Details

Part number XR33180
Manufacturer MaxLinear
File Size 616.28 KB
Description TSOT23 RS-485/RS-422 Receivers
Datasheet download datasheet XR33180 Datasheet
Additional preview pages of the XR33180 datasheet.

📁 Similar Datasheet

  • XR33180 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33181 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33183 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33184 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33152 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33155 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33156 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33158 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33193 - TSOT23 RS-485/RS-422 Transmitters (Exar)
  • XR33194 - TSOT23 RS-485/RS-422 Transmitters (Exar)
Other Datasheets by MaxLinear
  • XR33181 - TSOT23 RS-485/RS-422 Receivers
  • XR33183 - TSOT23 RS-485/RS-422 Receivers
  • XR33184 - TSOT23 RS-485/RS-422 Receivers
  • XR33152 - RS-485/RS-422 Transceivers
  • XR33155 - RS-485/RS-422 Transceivers
  • XR33156 - RS-485/RS-422 Transceivers
  • XR33158 - RS-485/RS-422 Transceivers
  • XR33193 - TSOT23 RS-485/RS-422 Transmitters

Full PDF Text Transcription

Click to expand full text

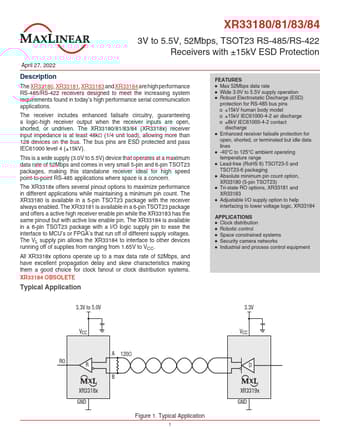

XR33180/81/83/84 3V to 5.5V, 52Mbps, TSOT23 RS-485/RS-422 Receivers with ±15kV ESD Protection April 27, 2022 Description The XR33180, XR33181, XR33183 and XR33184 are high performance RS-485/RS-422 receivers designed to meet the increasing system requirements found in today’s high performance serial communication applications. The receiver includes enhanced failsafe circuitry, guaranteeing a logic-high receiver output when the receiver inputs are open, shorted, or undriven. The XR33180/81/83/84 (XR3318x) receiver input impedance is at least 48kΩ (1/4 unit load), allowing more than 128 devices on the bus. The bus pins are ESD protected and pass IEC61000 level 4 (±15kV). This is a wide supply (3.0V to 5.
