XR33181 - TSOT23 RS-485/RS-422 Receivers

This page provides the datasheet information for the XR33181, a member of the XR33180 TSOT23 RS-485/RS-422 Receivers family.

Datasheet Summary

Description

The XR33180, XR33181, XR33183 and XR33184 are high performance RS-485/RS-422 receivers designed to meet the increasing system requirements found in today’s high performance serial communication applications.

Features

  • Max 52Mbps data rate.
  • Wide 3.0V to 5.5V supply operation.
  • Robust Electrostatic Discharge (ESD) protection for RS-485 bus pins.
  • ±15kV human body model.
  • ±15kV IEC61000-4-2 air discharge.
  • ±8kV IEC61000-4-2 contact discharge.
  • Enhanced receiver failsafe protection for open, shorted, or terminated but idle data lines.
  • -40°C to 125°C ambient operating temperature range.
  • Lead-free (RoHS 6) TSOT23-5 and TSOT23-6 packaging.
  • Absolute minimum pin count opti.

📥 Download Datasheet

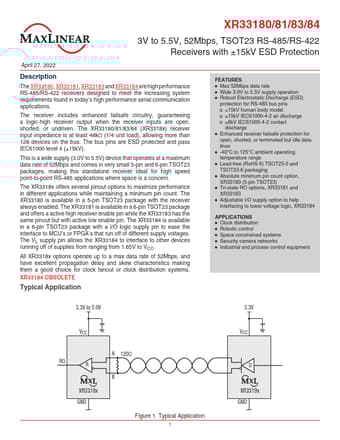

Datasheet preview – XR33181
